Ductile iron pipe has become one of the most trusted materials in modern water and wastewater systems because of its strength, flexibility, and long service life. However, the performance of a ductile iron pipe system depends not only on the pipe itself but also on the type of joints used to connect the sections together. Choosing the right joints for ductile iron pipe ensures that the system remains leak-free, durable, and able to withstand internal and external stresses. Different joint types serve different applications, and understanding how they work helps engineers, installers, and maintenance crews make informed decisions.
Understanding Ductile Iron Pipe Joints
Joints for ductile iron pipe are designed to connect pipe sections securely while allowing for certain degrees of flexibility and movement. This flexibility is especially important in underground installations, where soil settlement, temperature changes, and internal pressure can cause pipes to shift slightly. The type of joint selected will depend on factors such as pressure rating, location, soil condition, and whether the line is meant for water distribution, sewer, or industrial use.
In general, joints are expected to provide a watertight seal, resist separation under pressure, and accommodate limited angular deflection. Over the years, engineers have developed several joint types to meet these needs efficiently.
Main Types of Joints for Ductile Iron Pipe
There are several commonly used joint systems for ductile iron pipe, each offering unique benefits. The most prevalent types include push-on joints, mechanical joints, restrained joints, flanged joints, and ball-and-socket joints. Each serves specific purposes and installation environments.
Push-On Joints

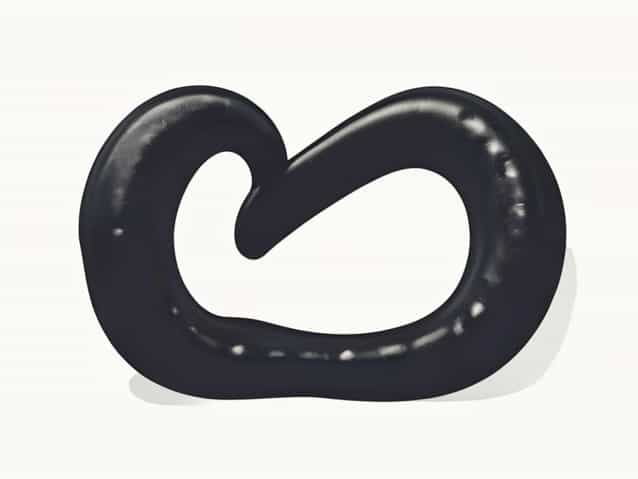

Push-on joints are the most widely used type for ductile iron pipe installations. They are simple to assemble, requiring no bolts or gaskets beyond a pre-fitted rubber ring. A special rubber gasket is placed in the groove of the bell end of the pipe, and the spigot end of the next pipe is pushed into it. The compression of the gasket forms a tight, leak-free seal.
The main advantages of push-on joints include their ease of installation, reliability, and flexibility. They allow for slight angular deflection, which makes them suitable for underground applications where exact alignment may not be possible. They are also cost-effective because they reduce installation time and labor costs.
Mechanical Joints
Mechanical joints use a bolted gland system to compress a rubber gasket between the bell and the spigot ends of two pipes. This method provides a strong, leak-tight connection that can be easily assembled or disassembled for maintenance purposes. The use of bolts ensures a more rigid connection compared to push-on joints, making them suitable for areas where additional restraint or control is needed.
Mechanical joints are often used in fittings, valves, and hydrant connections. They allow for some deflection but are more rigid overall. Because they can be tightened or loosened as needed, they are particularly useful in systems that may require occasional disassembly.
Restrained Joints
Restrained joints are designed to prevent pipe separation under conditions of high internal pressure or external forces, such as in steep terrains or near bends. These joints combine the flexibility of push-on or mechanical joints with additional restraint mechanisms-like locking wedges, clamps, or grip rings-that hold the pipe securely in place.
They are ideal for installations where thrust blocks are impractical or where soil conditions are unstable. Restrained joints ensure that the pipe remains properly aligned and secure even during high-pressure surges or seismic activity.
Flanged Joints
Flanged joints are typically used in above-ground installations, treatment plants, pump stations, or any location where frequent disassembly is necessary. These joints consist of two flanges bolted together with a gasket in between to create a seal. The flanged system provides a rigid connection that can handle high pressure but offers minimal flexibility.
Although not ideal for underground pipelines due to their rigidity, flanged joints excel in industrial and mechanical environments where alignment and easy access are essential. They are also commonly used for connecting ductile iron pipe to equipment such as pumps and valves.
Ball-and-Socket Joints
Ball-and-socket joints are specialized connections that allow for significant angular movement while maintaining a watertight seal. They are particularly used in applications that require flexibility, such as river crossings or uneven terrains. The ball-and-socket design enables the pipe to adjust to ground movement, making it a good choice for challenging installation sites.
This type of joint is more complex to produce and install but provides exceptional adaptability and strength. It ensures that the system remains intact even when subjected to shifting or bending forces.
Choosing the Right Joint for the Application
Selecting the correct joint for ductile iron pipe depends on several factors. Engineers must consider not only the physical environment but also operational conditions like pressure, temperature, and expected movement. Below are key considerations that guide joint selection
- Pressure ratingHigh-pressure systems may require restrained or flanged joints for added stability.
- Soil conditionsIn unstable soils or seismic areas, flexible joints such as push-on or ball-and-socket types perform better.
- AccessibilityFor areas where maintenance is frequent, mechanical or flanged joints offer ease of disassembly.
- Pipeline alignmentWhere precise alignment cannot be guaranteed, push-on joints allow for angular deflection without leaks.
- Corrosion resistanceDepending on the environment, protective coatings or special gaskets may be required for longevity.
Each joint type is designed to balance flexibility, strength, and sealing performance. Understanding the system’s demands ensures long-term reliability and minimizes repair costs.
Installation Practices for Ductile Iron Pipe Joints
Proper installation is crucial to achieving the expected performance from ductile iron pipe joints. Even the most advanced joint design can fail if not assembled correctly. Before joining, all pipe ends should be cleaned, and gaskets must be inspected for damage or debris. Proper lubrication, usually with an approved pipe lubricant, ensures smooth assembly and helps create a tight seal.
For push-on joints, it’s important to align the pipes correctly before insertion to prevent gasket displacement. For mechanical joints, bolt tightening should follow a cross-pattern to apply even pressure across the gasket. This practice prevents uneven compression that could lead to leaks. Restraint devices, where required, must be installed according to the manufacturer’s guidelines to ensure full functionality.
Maintenance and Inspection
Ductile iron pipe systems require minimal maintenance, but periodic inspections help ensure long-term reliability. Checking joint integrity during routine maintenance can identify issues early, such as gasket wear or bolt loosening. In high-pressure applications, visual and pressure tests are often used to verify joint tightness before the system becomes operational.
Regular monitoring also helps detect ground shifts or other external factors that may impact joint performance. This proactive approach extends the life of the pipeline and reduces the risk of unexpected failures.
Advantages of Modern Ductile Iron Pipe Joints
Modern joint technology for ductile iron pipes has advanced significantly over the years. Today’s systems are designed to meet both structural and operational needs. The key advantages include
- Quick and simple installation processes that reduce labor costs.
- Reliable watertight seals that prevent leakage and contamination.
- Flexibility to accommodate ground movement and misalignment.
- Durability to withstand pressure surges and environmental stress.
- Compatibility with various fittings, valves, and accessories.
These benefits make ductile iron pipe systems with proper joints one of the most dependable options for modern infrastructure projects worldwide.
Joints for ductile iron pipe play a crucial role in ensuring the performance and longevity of any piping system. Whether using push-on joints for underground water lines, mechanical joints for accessible connections, or flanged joints in industrial applications, the goal remains the same to achieve a durable, leak-free, and flexible connection. By understanding the unique properties and applications of each joint type, engineers and contractors can design systems that stand the test of time. As technology continues to evolve, ductile iron pipe joints will remain at the heart of efficient and sustainable water infrastructure around the world.
